Opis:
D-ILA 3D 4K Front Projector. Advanced 6th generation three-chip, 1920×1080 D-ILA® engine. New V4K™ engine for enhanced 4K viewing (3840x2160) from 1080p and Ultra HD (4K) sources. Advanced onboard VariScope™ lens memory system (five presets) for 1.78, 1.85, 2.20:1, 2.35:1 and 2.40:1 aspect ratio viewing. Factory hand-calibrated for both 2D and 3D viewing modes. New 230W NSH lamp, 1300 ANSI, ~110,000:1 native CR performance. Wolf Cinema’s multi-axis color management system (R,G,B,C,M,Y and Orange) with multiple presets. Advanced real time 2D-to-3D conversion mode. Adjustable 3D parallax and crosstalk cancellation for reduced “ghosting” artifacts. Multi-zone pixel convergence (1/16th pixel, 121 zone adjustment). Extended range primary lens: 1.45:1 to 2.78:1 TD. Inputs: HDMI 1.4a (2). IR Remote Control included plus LAN, RS-232 system control capabilities. Two optional VariScope FX™ Fixed Anamorphic Lens Assemblies. Elegant gloss gray cabinet with optimized thermal design for extended projector and lamp life. Optional 3D starter pack includes 3D signal emitter and two pairs of active glasses; additional glasses available. Optional WC-PM-M ceiling mount kit.
2016 Feature Upgrades
Wolf Cinema is proud to announce key feature upgrades to our next-generation Wolf Cinema V4K™ projector, and the second in the GrayWolf series – model SDC-12, aka “GrayWolf 4K”. Developed for the true home theater enthusiast, the all-new SDC-12 is the perfect home cinema projector enabled for imaging excellence in 2D and 3D (stereoscopic) viewing.
The SDC-12 features a sixth-generation three-chip, D-ILA® (Direct Drive Image Light Amplifier) light engine for high fidelity viewing. D-ILA is an advanced technology developed by JVC Kenwood (JVC), which produces stunning film-like pictures with deep contrast level performance and natural color renditions. The system boasts advanced on-board video processing plus precision optics for razor-sharp imaging from today’s most demanding sources. Each projector is carefully hand-calibrated at the factory for top performance when viewing both 2D and 3D content.
Featured in our SDC-12 theater projector is Wolf Cinema’s remarkable V4K (Gen4 “e-shift”) technology, delivering ultra-high resolution 3840 X 2160 performances from standard definition, HD and Ultra HD (4K) sources. V4K rapidly merges two full frame 1080p images, and by a precision 0.5 pixel offset the projector can virtually eliminate the visible “pixel gate” often experienced in other HD projectors. The result? A seamless, filmic image that can easily fill home theater screens up to 14-feet in width.
Also incorporated is our expanded Wolf Cinema VariScope™ lens memory system. The projector’s precision optics enables rapid access to ten of your favorite widescreen aspect ratios – ex: 1.78:1, 1.85:1, 2.20:1, 2.35:1 and 2.40:1 – without the need for an external anamorphic lens. Now everyone can enjoy the full CinemaScope® widescreen experience without unwanted top/bottom “black bars” on suitable home theater screens.

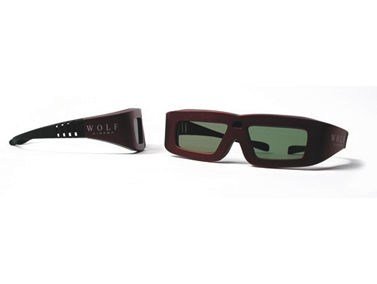

The SDC-12 is delivered in an elegant high gloss dark gray cabinet, and comes complete with a system IR remote control, LAN and RS-232 system control capabilities. Updated Wolf Cinema 3D shutter glasses and emitter are also available.
|
| Display Panel/Size |
6th generation D-ILA device *† 0.7” (1920 pixels x 1080 pixels) x3 (total no. of pixels: approx. 6.22 million |
| Projection Lens, TD | 1.45:1 to 2.78:1 TD factor (x SW), 2.0 x motorized zoom lens (zoom/position/focus)Lens shift ~80% Vertical, ~35% Horizontal |
| VariScope™ | Ten user-adjustable lens presets – ex: 1.78:1, 1.85:1, 2.20:1, 2.35:1, 2.40:1 etc. aspect ratios, (NOTE: projector throw distance when utilizing the internal VariScope feature is appx. 1.45:1 to 2.1:1 x SW) (External VariScope FX™ anamorphic lens support also provided) |
| Light-source Lamp | 265W UHP Lamp (Part No. WC-LPU265, 2016 editions)
|
| Average Lifespan | 4500 hours (normal mode) |
| Performance | 1900 ANSI, ~140,000:1 CR performance (Selectable ILS iris increases dynamic CR to ~1,300,000:1) |
| V4K™ Resolution | 3840 x 2160 (Capable of rendering 4096 x 2160) |
| 2D->3D Algorithm | Real time conversion of standard 2D images into 3D |
| Projection Distance | Approx. 1.8m to 12m |
| Video Input Signals | 480i/p, 576i/p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz, 1080p/24Hz, 1080p/50Hz, 1080p/60Hz, 3840×2160/24Hz, 3840×2160/25Hz, 3840×2160/30Hz, 3840×2160/50Hz, 3840×2160/60Hz, 4096×2160/24Hz, 4096×2160/25Hz, 4096×2160/30Hz, 4096×2160/50Hz, 4096×2160/60Hz |
| Video Inputs | HDMI 2.0 (x2), HDCP 2.2 compliant |
| Outputs | 3.5 mm DC trigger, 3D synchro emitter jack (mini DIN 3pin) x1 |
| Control Terminals | RS-232C terminal, D-sub 9-pin (male) x1 (external control) LAN Terminal, RJ-45 plug x1 ‡ |
| Power Requirements | AC 110V-240V 50/60Hz |
| Power Consumption | 380W (during Normal standby, 1.5W. During Eco Mode standby, 0.4W) |
| Operation Environment | Temperature: 5ºC to 35ºC Humidity: 20% to 80% (no condensation) (storage temperature: -10 C to 60 C) |
| Installation Height | Recommended below 5000 ft (1524 m). (high altitude operating mode available) |
| Dimensions (WxHxD) | 19.5 x 8.8 x 22.5 in., 496 x 224 x 572 mm |
| Weight | 60 lbs., 28 kg. net / 75 lbs., 34 kg. shipping |
| * D-ILA is the abbreviation for Direct-Drive Image Light Amplifier. † D-ILA devices are manufactured using extremely high-precision technology. Pixel effectiveness is 99.99% Only 0.01% or less of the pixels may be off or permanently lit and still be within spec. ‡ Ethernet is not supported. Features, designs and specifications are subject to change without prior notice D-ILA is a trademark of the Victor Company of Japan (JVC Kenwood) |
All Wolf projectors and processors are warranted for 3 years [36 months], parts & labor, from the original Wolf Cinema invoice date (excluding the lamp). Lamps are warranted under this Limited Warranty for a period of six (6) months or 1000 hours, whichever comes first, from the original Wolf Cinema invoice date. If replacement parts and/or a lamp are provided under this limited warranty, such parts and/or lamp are warranted for the remaining portion (if any) of the original warranty period.
